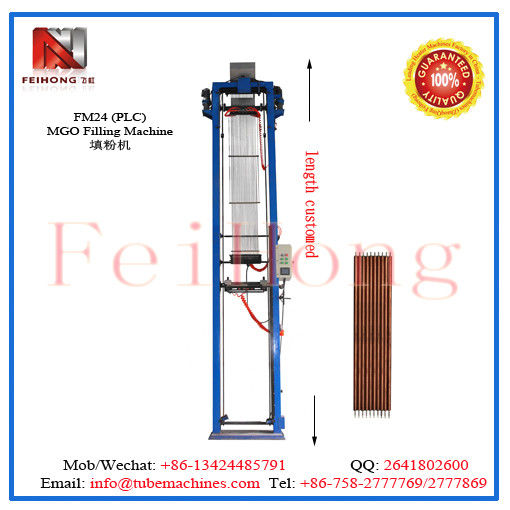

On the basis of the FM24 Standard Filling Machine, this machine introduces PLC, human-machine interface (touch screen), straight line guiding track and revolving clamp assemble. This machine come in two types: 24 stations and 48 stations, with the maximum filling length of 6M, and maximum filling dia. of Φ12.7mm. Because of the introduction of OLC and programmed counting assembly, users can easily adjust the length required by filling in the actual length(empty tube length) on the touch screen. This makes it more convenient and accurate than the artificial electro-adjustments, with an extra precision in filling orientation. The spiral nozzle inside the guiding tube and the exserted mandrel (hook) endows it with greater convenience than the previous artificial adjustment machines.
| MAIN TECHNICAL PARAMETER: |
| Filling stations: | 24 PCS (custom to order) |
| Max diameter of the filling pipe: | 25mm (custom to order) |
| Max filling length: | 6000mm (custom to order) |
| Min filling length: | 150 mm |
| Tap density: | more than 2.35g/cm3 |
| Power source: | 380W 220V 500W |
| Air supply: | 0.6MPa clean compressed air |
The pneumatic clamp we designed and shorter parts (below 1500mm) can quickly clamp 24 parts in a single clamping process, thus bringing high productivity.
In recent years, we have improved the structure of nozzle structure by applying the three layer tube structure instead of the traditional helix nozzle, which enables a larger flow of MGO and a higher filling efficiency. Whether in terms of helix nozzle or three layer tube structure, FM24-PLC boasts advanced filling equipment at home and abroad.
Now, here is some filling machines in Feihong facotry, welcome to visit Zhaoqing Feihong in China:
More MGO powder filling machine now coming:
This is a custom 12 station for tubular heater.
Many MGO powder filling machine working at the heater factories.
Zhaoqing Feihong is a mgo power filling machine factory in China, we make quality mgo power filling machine for heating elements, mgo filling machine for heater tubular. Our mgo power filliing machine are suitable for hot running heaters making and cartridge heater making.
Custom mgo power filling machine are accepted. We make 6 stations filling machine, 8 stations filling machine, 10 stations filling mahchines, 12 stations filling machine, 24 stations filling machine, 48 stations filling machines...Welcome to China to order mgo power filling machines.
